CNC Turning Service - Custom CNC Machining Services for Precision Parts

Multi-Axis Mastery for Your Most Demanding Parts.

By utilizing advanced turning equipment such as MillTurn Centers and Swisstype Lathes, we optimize processes to maximize cost efficiency.
Integrated turning and precision grinding deliver tolerances as tight as ±0.05mm.
Comprehensive surface finishing solutions for all functional and aesthetic needs.
We efficiently handle both single-piece prototypes and high-volume production orders.

Precision CNC Turning Services

Years of development, driven by the need to meet diverse product design requirements, have led us to continuously upgrade our equipment, now covering nearly all types of turning machines. We not only pursue perfect roundness and stringent dimensional tolerances (±0.005mm), but also integrate complex multi-step processes into a single setup through multi-axis mill-turn technology and Swiss-type precision lathes. This significantly enhances positional accuracy—such as concentricity and perpendicularity—while drastically reducing lead times. We transform your 3D models into complex components with tight tolerances, excellent surface finishes, and repeatable quality, making us the ideal choice for prototypes, functional parts, and low-to-medium volume

CNC Lathe

Stable and efficient — handles all types of rotational parts.

Turn-Mill Composite Lathe

Turn-mill complex in one setup — simplifies complex parts.

Swiss-type CNC lathe

Ultra-precision specialist — excels at slender shafts and micro parts.

Ideal for machining the vast majority of rotationally symmetric parts such as drive shafts, screws, flanges, and bearing sleeves.

Equipped with a live tool turret and spindle indexing (C-axis) capability. The rotating tools enable milling, drilling, and tapping operations, allowing multiple processes to be completed in a single setup.Commonly used for machining drive shafts, steering knuckles, optical lens barrels, sensor housings, artificial joints, and general mechanical components.

The spindle moves along the Z-axis, feeding the bar stock while tools are radially arranged. This enables ultra-high precision and continuous one-pass machining of complex features.Complete multiple operations in a single setup — including external turning, drilling, tapping, milling flats, knurling, etc. — avoiding cumulative errors caused by multiple setups. This is widely used in the processing of precision components for optics, microelectronics, telecommunications, and medical devices, such as precision drive shafts, artificial joints, titanium alloy insertion needles, and similar parts."

Why Choose Pression for CNC Milling?

Location advantage: Located in Guangzhou, the center of manufacturing, with materials, molds, testing, and logistics highly concentrated, reducing transportation time and cost by 20%–40%.
Technical support: Senior presales engineers follow up on orders until shipment — not ordinary salespeople — significantly lowering communication costs and ensuring professional efficiency.
Detail control: Beyond dimensional accuracy, we strictly control material environmental compliance (meeting regulations of the target region) and optimize packaging solutions to prevent transportation damage.
DFM assessment: Analyze manufacturability, tolerances, material properties, and structural weaknesses in advance, avoiding processing risks at the source.

Machining Equipment

Equipment Name	Equipment Model	Machining Range	Accuracy
CNC Lathe	CHK52	Max. turning: φ360 × 520mm	±0.01mm
CNC Lathe	TK36S	Max. turning:φ320x 650mm	±0.01mm
CNC Lathe	CAK80185	Max. turning:φ800x1500mm	±0.01mm
CNC Lathe	CY-K6150B	Max. turning:φ500x 1500mm	±0.01mm
Turn-Mill Composite Lathe	LST-508MY	Max. turning:φ300x 500mm	±0.005mm
Turn-Mill Composite Lathe	KLS-400DY	Max. turning:φ280x 500mm	±0.01mm
Slant-Bed Gang Tool CNC Lathe	SC-46L	Max. turning:φ400x1100mm	±0.01mm
Swiss-type CNC lathe	B0206	Max. turning:φ20x 300mm	±0.01mm

Materials Suitable for Machining

We offer an extensive selection of custom machining materials to meet both the design and functional requirements of prototypes, including both plastics and metals.

Aluminum

Stainless Steel

Alloy Steel

Tool Steel

Brass

Titanium

POM (Delrin/Acetal)

PEEK

Nylon

PEI

PMMA

ABS

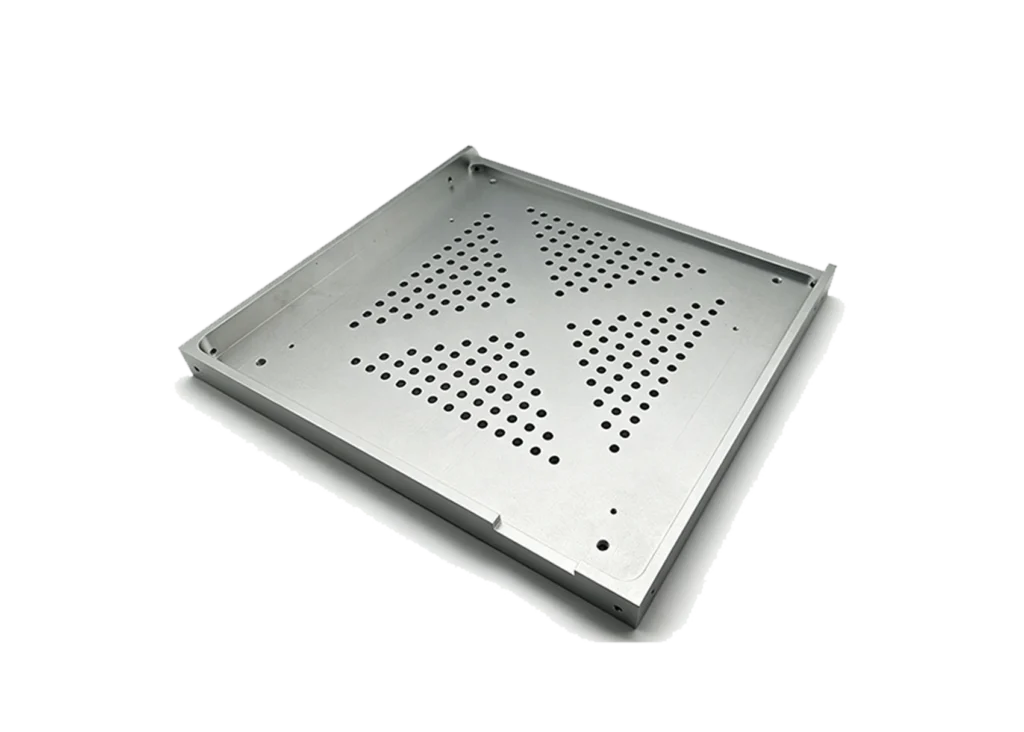

Aluminum: Known for its excellent strength-to-weight ratio, cost-effectiveness, and recyclability, aluminum is a top choice across numerous industries.
Available Alloys: 6061-T6, 7075-T6,1050, 5052, 6063, 5083
Surface Finishing Options: Anodizing/Hard Anodizing/Powder Coating/Liquid Painting/Electroless Nickel Plating/Passivation/Sand Blasting/Polishing

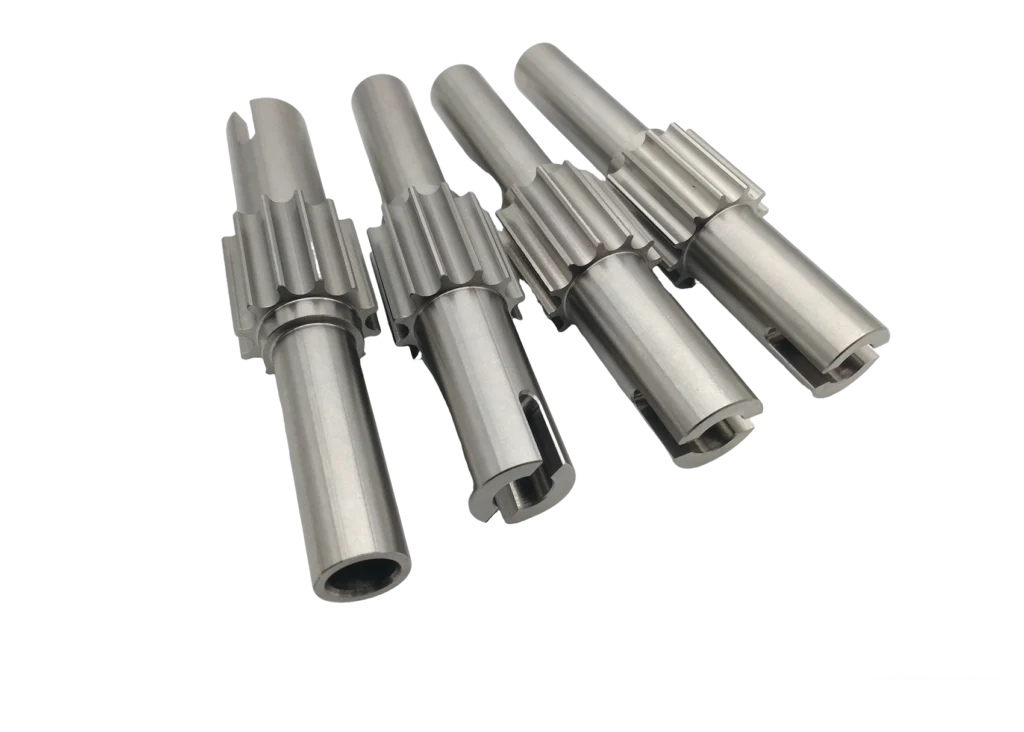

Stainless Steel: With excellent corrosion resistance and ductility, stainless steel is perfect for outdoor applications and easily formed into complex shapes.
Available Alloys: SS304 316 316L 310S 430 420 440C 17-4PH
Finishing Options: As Machined, Bead Blasting, Polishing, Decorative Chrome Plating, Powder Coating, Nickel Plating, Gold Plating

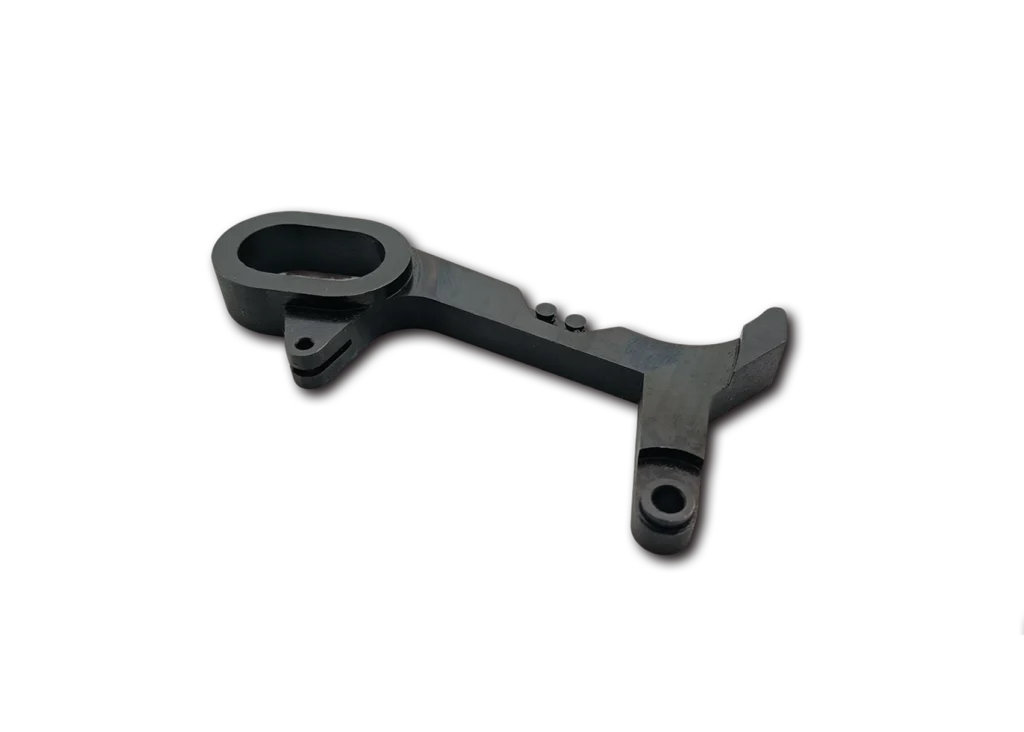

Alloy Steel: Engineered by combining steel with elements such as manganese, nickel, and chromium, alloy steel offers enhanced strength, hardness, corrosion resistance, and longevity for specialized applications.
Available Alloys: AISI 1215, 4140, AISI 4340, AISI 8620, AISI 4130
Finishing Options: Polishing, Plating, Painting, Powder Coating, and more

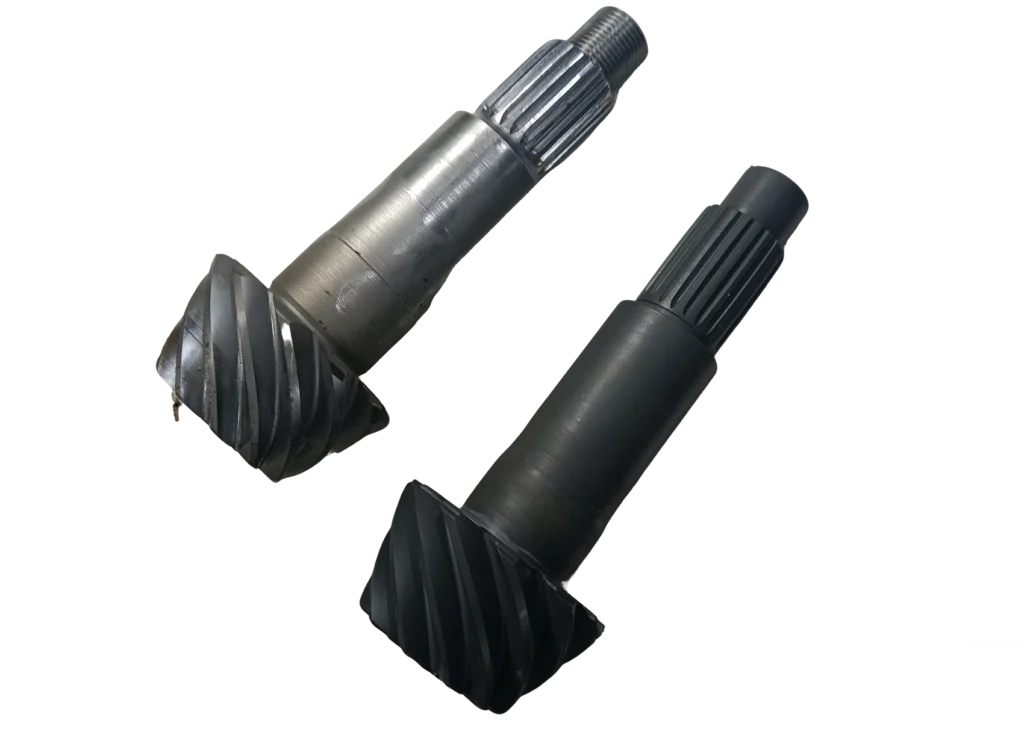

Tool Steel: High hardness, wear resistance & toughness for cutting tools, dies, and molds under repeated stress/impact.
Available Alloys: A2, D2, O1, S7, M2 Tool Steel
Finishing Options: Bead or Sand Blasting, Polishing, Plating, Painting, Powder Coating, Heat Treatment, and more

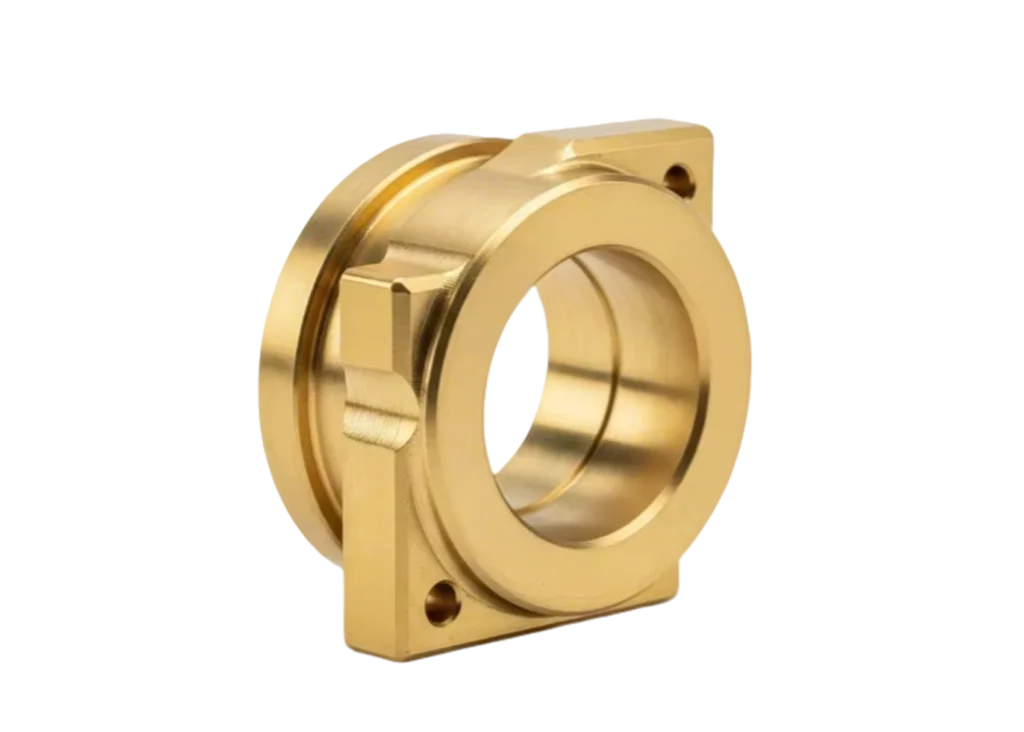

Brass: Brass, a copper-zinc alloy with over 20% zinc content, is one of the most widely used materials in CNC machining due to its excellent machinability and versatility.
Available Alloys: C360, C260
Finishing Options: Nickel Plating, Bead Blasting, Gold Plating, Silver Plating

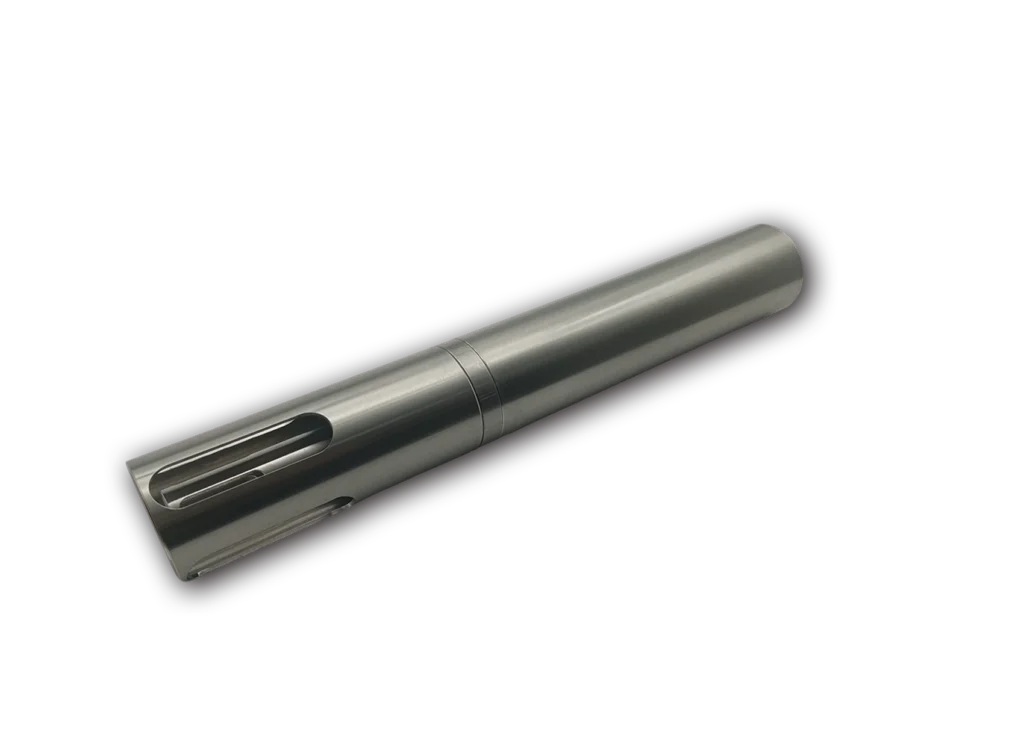

Titanium: A strong, lightweight metal with excellent corrosion resistance, ideal for aerospace, automotive, and medical applications.Available
Alloys: TC4(Ti-6Al-4V), TA1, TA2

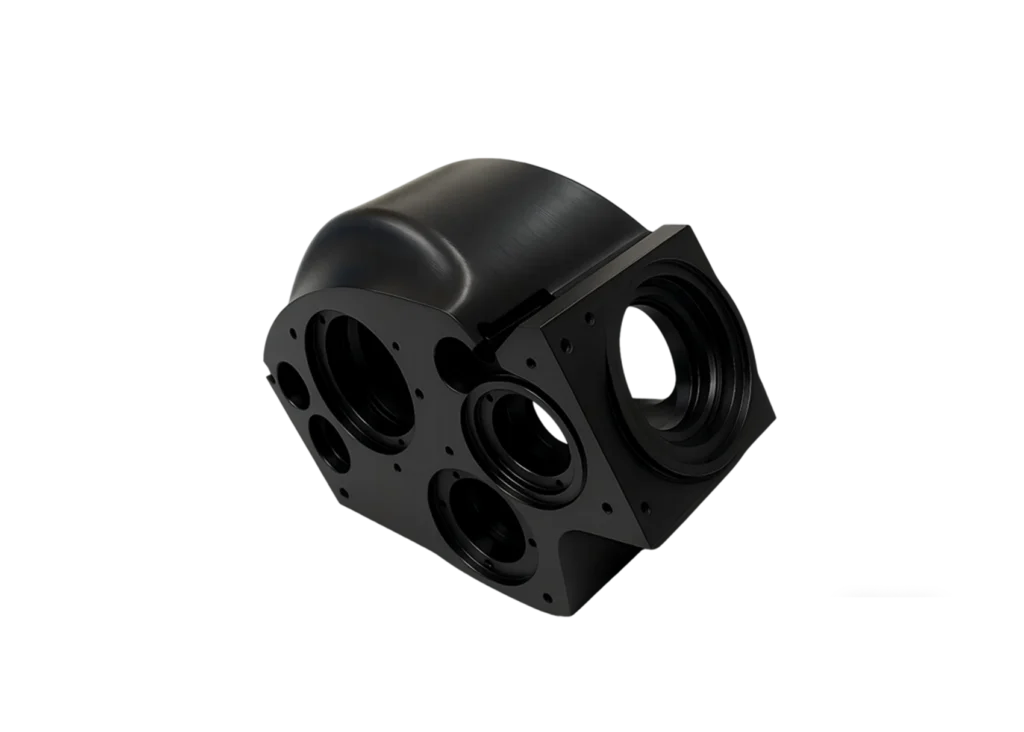

POM (Delrin/Acetal): Offers excellent stiffness, low friction, strong wear resistance, and good moisture resistance, making it easy to machine and ideal for precision parts.
Available Colors: White, Black, Brown
Available Grades: POM-C, Delrin 100, Food-Grade POM

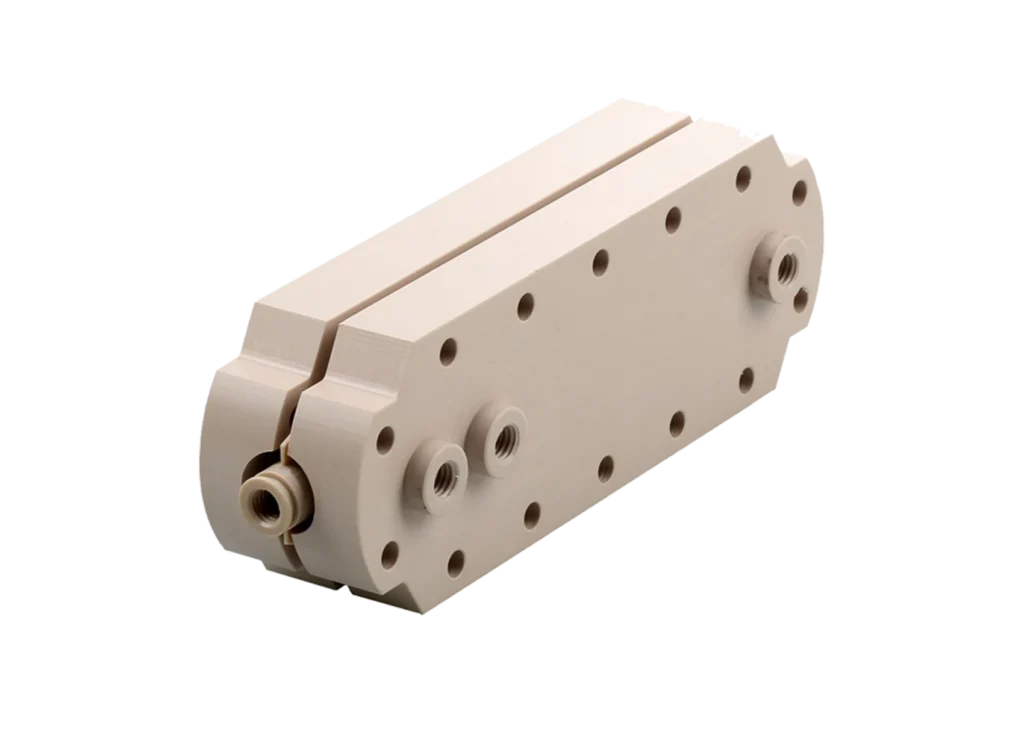

PEEK: Short for Polyether Ether Ketone, PEEK is a high-performance engineering plastic known for its outstanding mechanical strength, chemical resistance, and thermal stability.
Available Color: Beige, non-transparent
Available Grades: Unfilled PEEK, 30% Glass-Fiber Reinforced PEEK, 30% Carbon-Fiber Reinforced PEEK, Bearing Grade PEEK

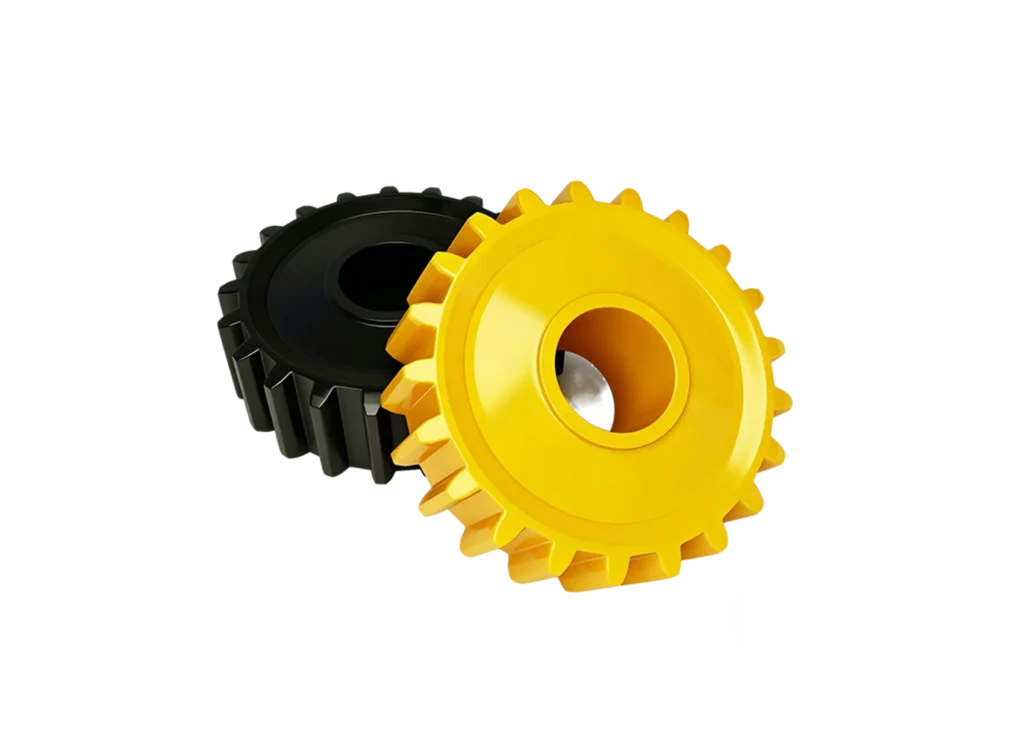

Nylon: Nylon is a tough, flexible, and long-lasting material widely used in textiles and industrial components. Its excellent resistance to wear, chemicals, and moisture makes it ideal for applications like gears, bearings, and automotive parts.
Available Color: White, Black,
Available Grades: PA6, PA66, PA 12

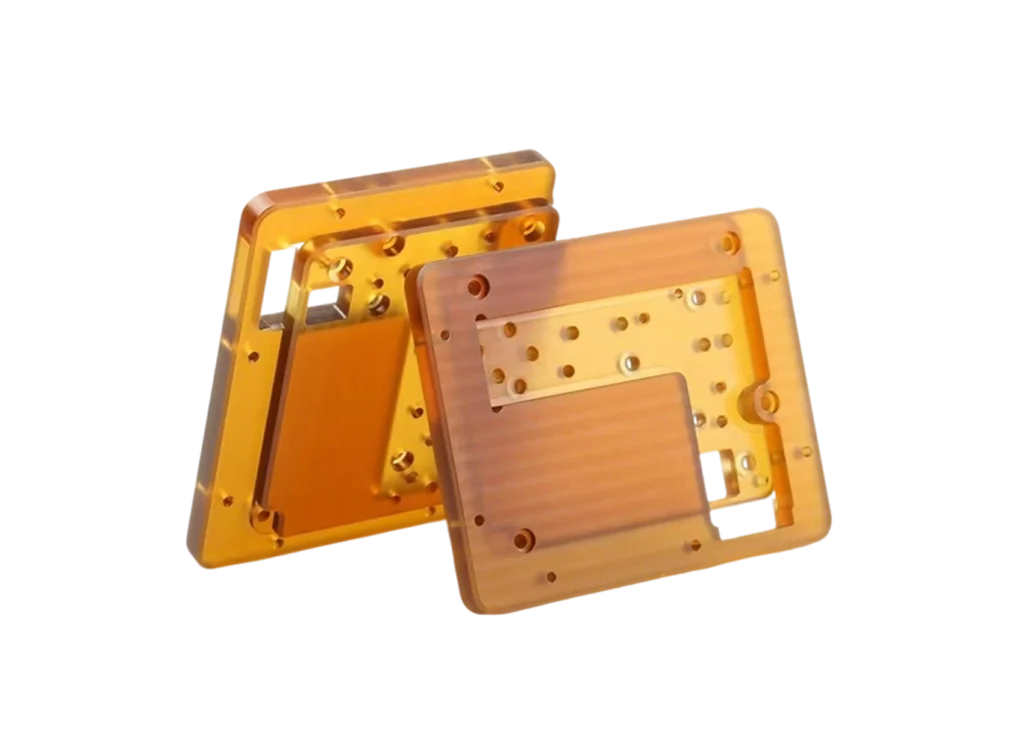

PEI: PEI is a high-performance thermoplastic offering superior mechanical strength, thermal stability, electrical insulation, and chemical resistance.
Available Color: Amber or brownish hue
Available Grades: Unfilled PEI, Glass-Filled PEI, Carbon-Filled PEI, Ultem PEI

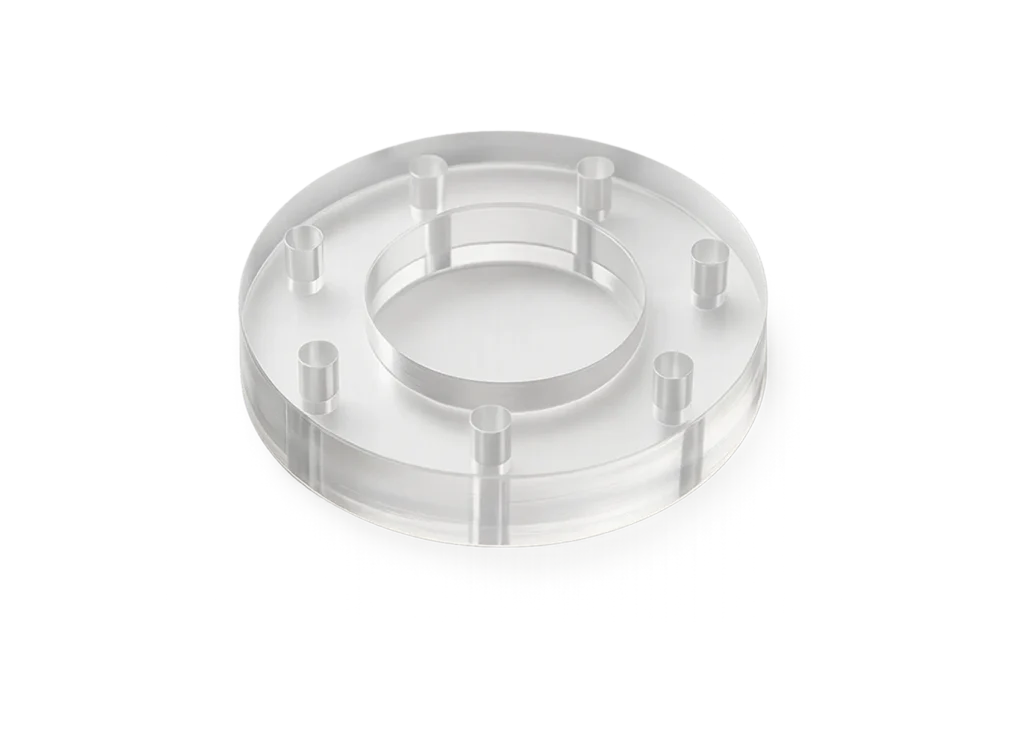

PMMA: Commonly referred to as “acrylic” or “plexiglass,” PMMA is a lightweight, impact-resistant material often used as a glass alternative in products like skylights, signage, displays, and optical lenses.
Available Color: Transparent
Available Grades: Extruded PMMA, Cast PMMA, Impact-Modified PMMA, UV-Stabilized PMMA, Heat-Resistant PMMA

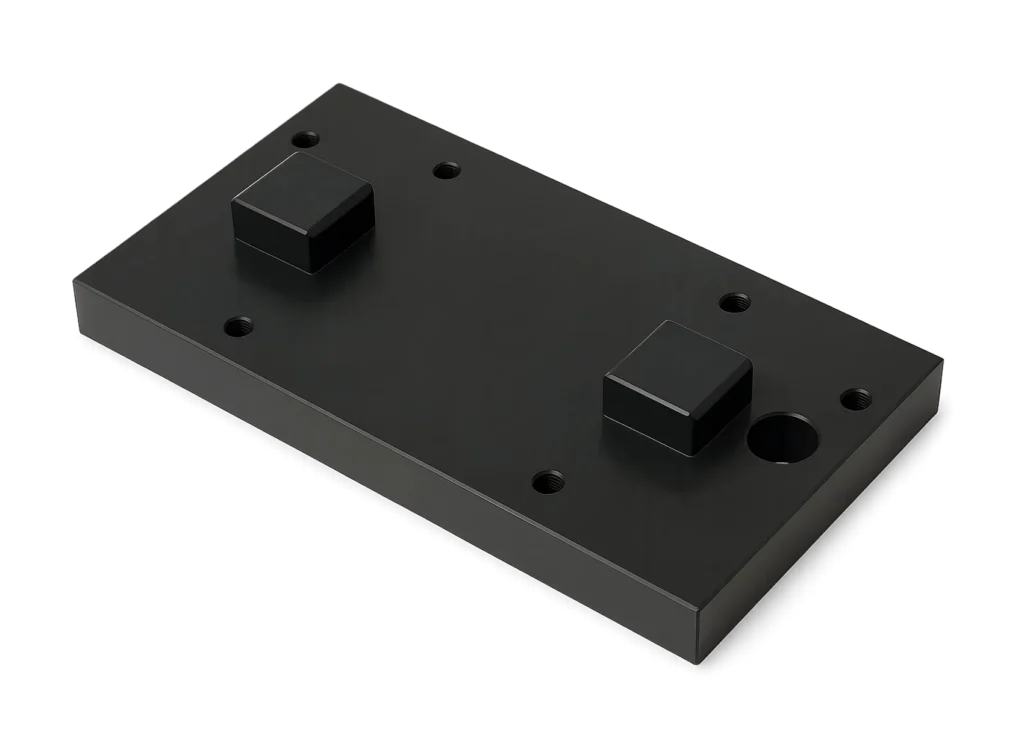

ABS: A tough, rigid, and lightweight thermoplastic widely used in automotive parts, electronics, and consumer goods, offering excellent impact, chemical, and heat resistance.

Surface Treatment

Appropriate surface treatment is the crucial final step in the manufacturing process, transforming a machined component into a high-performance, durable, and market-ready product. Our comprehensive suite of surface finishing services is designed to protect your parts from corrosion and wear while delivering the exact aesthetic you envision. Discover our capabilities to find the perfect solution tailored to your application.

Electrochemical treatment

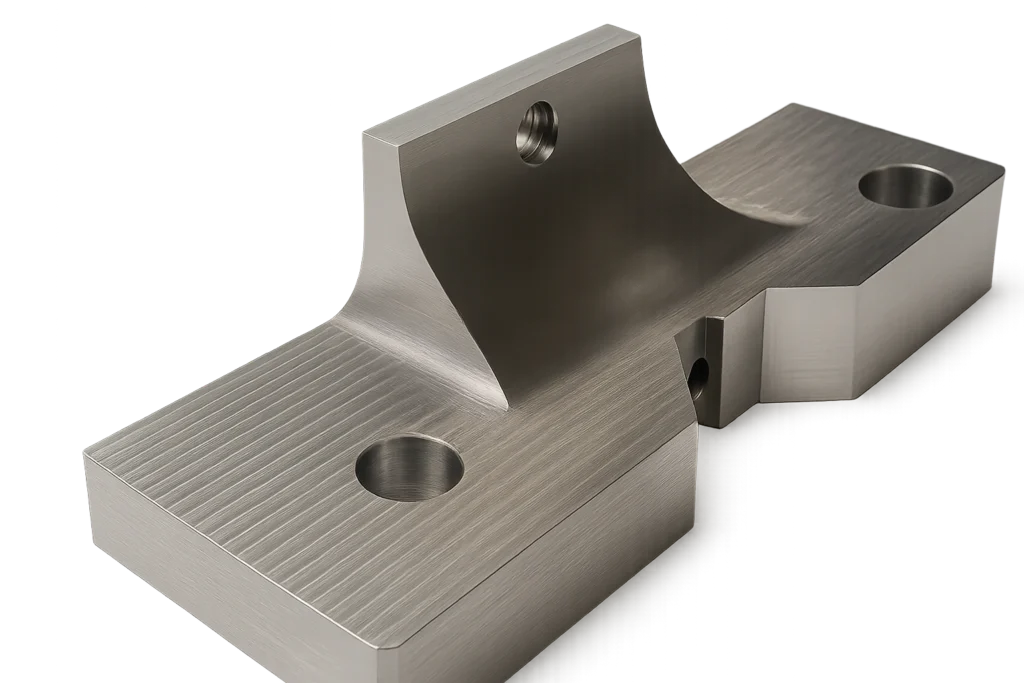

As Machined

Parts are machined and deburred, sharp edges are chamfered. Visible machining marks, light surface scratches.

Polishing (Ra 0.8μm / Ra 32μin or better)

Polishing involves producing a smooth, glossy surface by mechanical rubbing or through the use of chemical treatments.

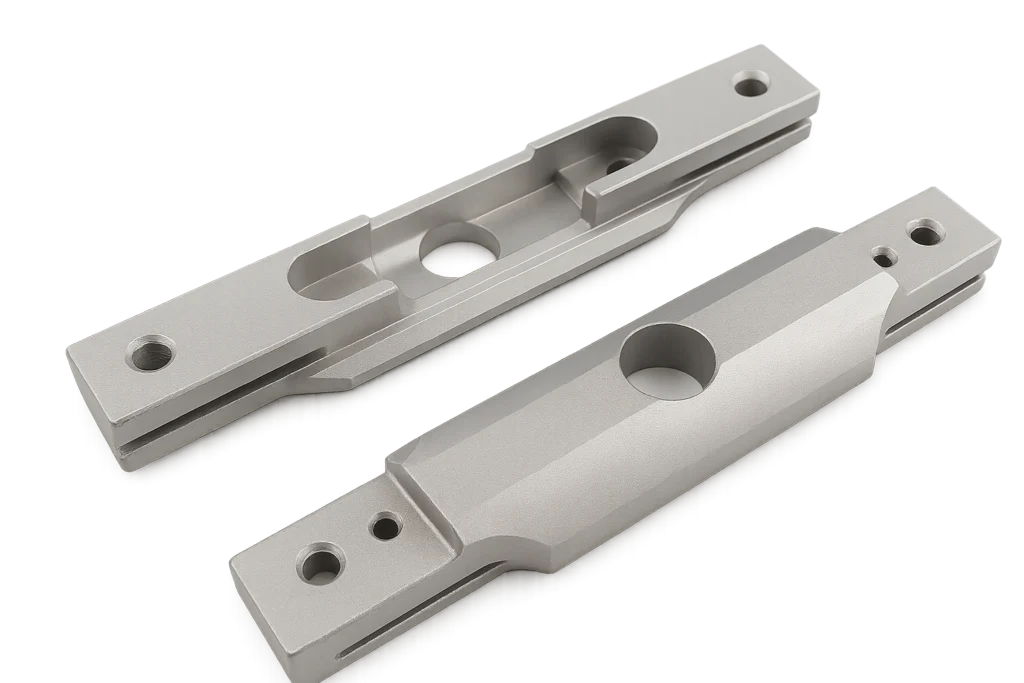

Bead Blasting

Parts are bead blasted with glass beads which results in smooth, matte appearance and reduced machining marks.

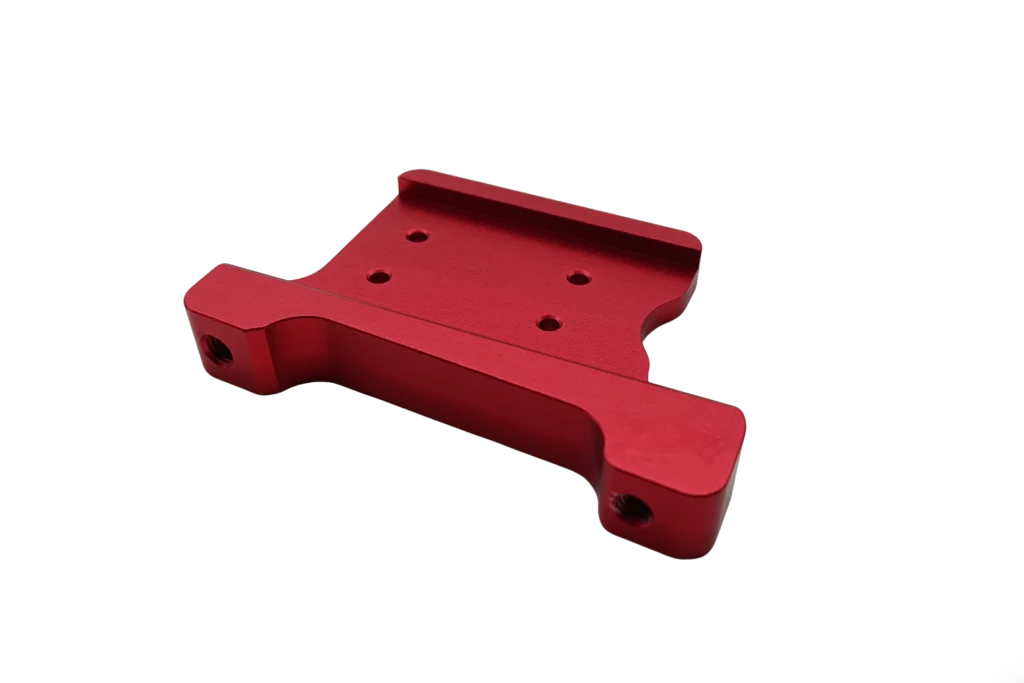

Bead blasted + Anodizing type II

Parts are bead blasted to a #120 grit finish prior to receiving Type II anodizing—perfect for enhancing aluminum's corrosion resistance and improving its visual appearance.

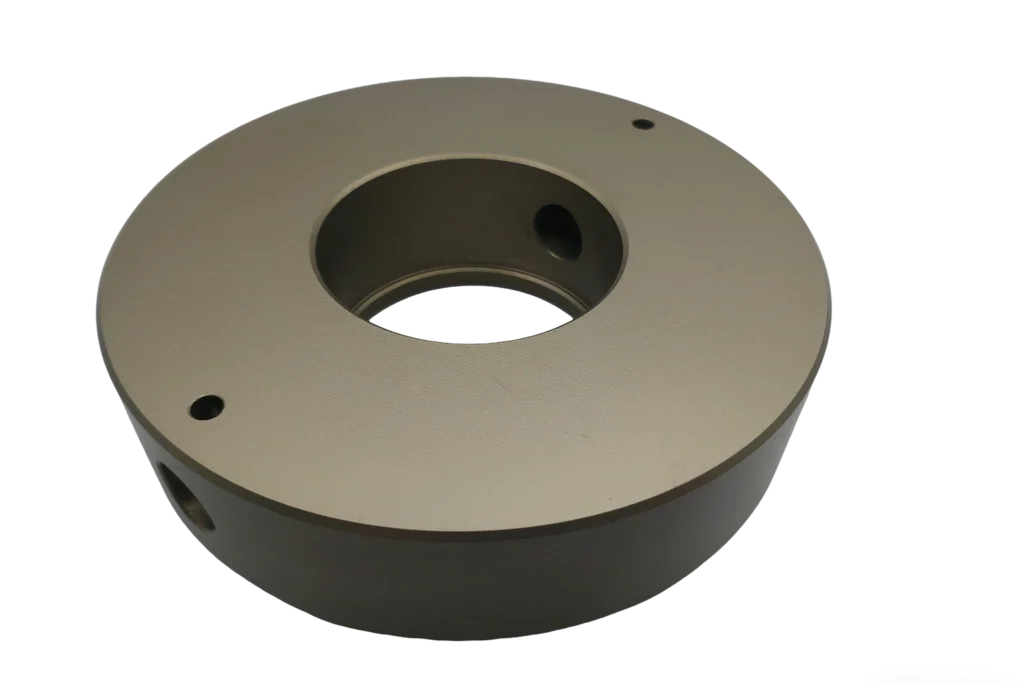

Bead blasted + Anodized type III (Hardcoat)

Parts are bead blasted to #120 grit before undergoing Type III anodizing. Type III (Hard Anodizing) provides a thicker, wear-resistant coating in addition to Type II’s corrosion protection, making it ideal for demanding functional uses.

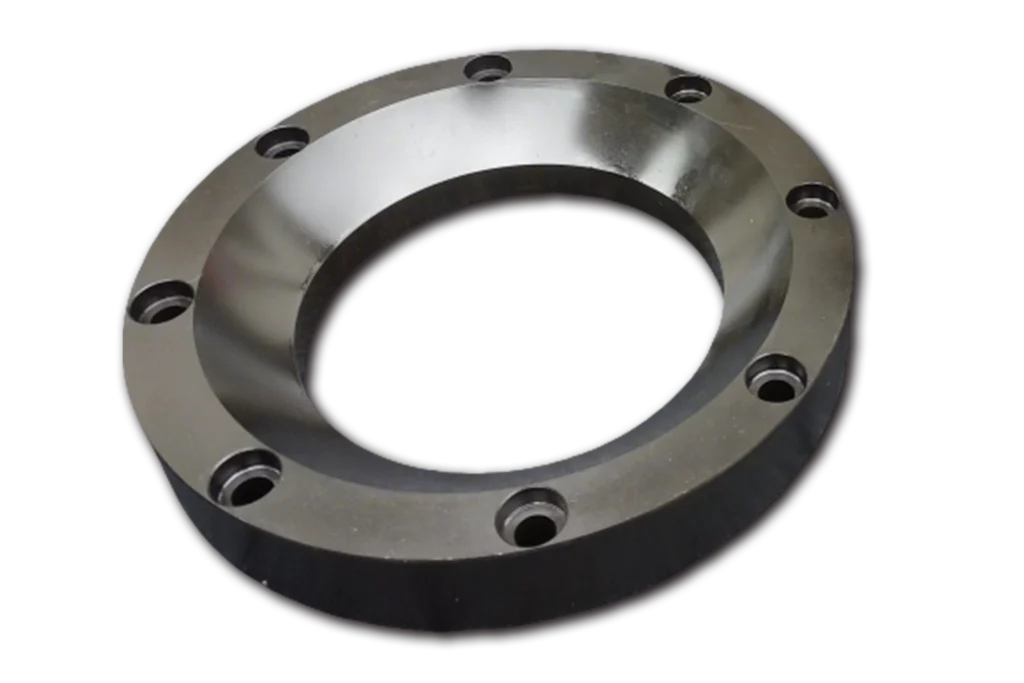

Black Oxide

Black oxide is a type of conversion coating applied to steel parts to enhance corrosion resistance and reduce surface reflectivity.

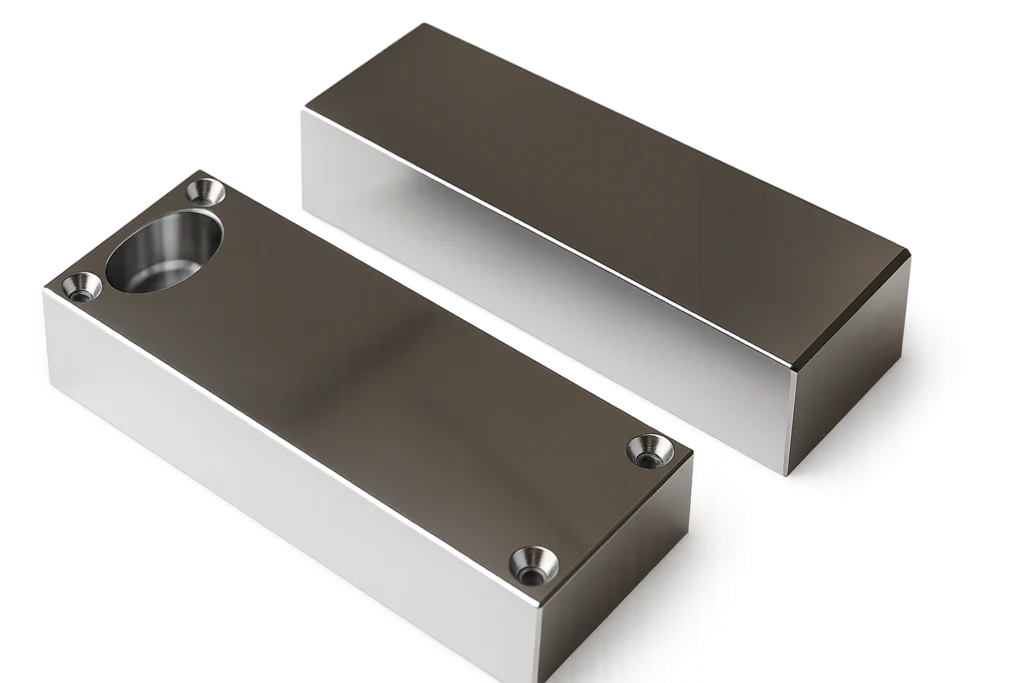

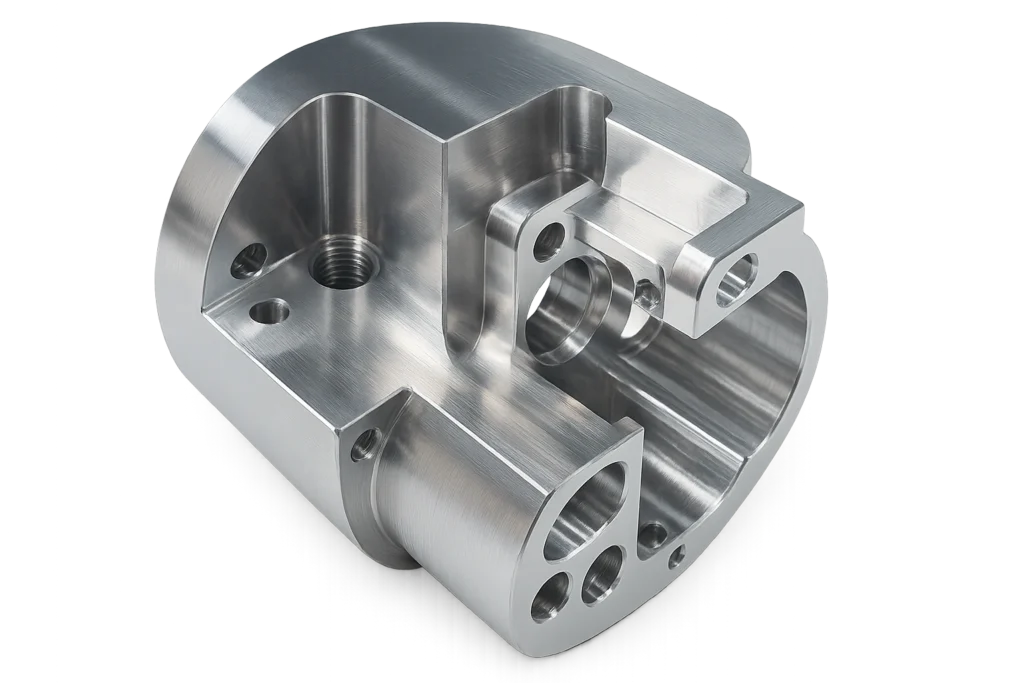

Mirror Polishing

A surface finishing process that uses a series of increasingly fine abrasive tools and compounds to produce a highly reflective, mirror-like surface finish.

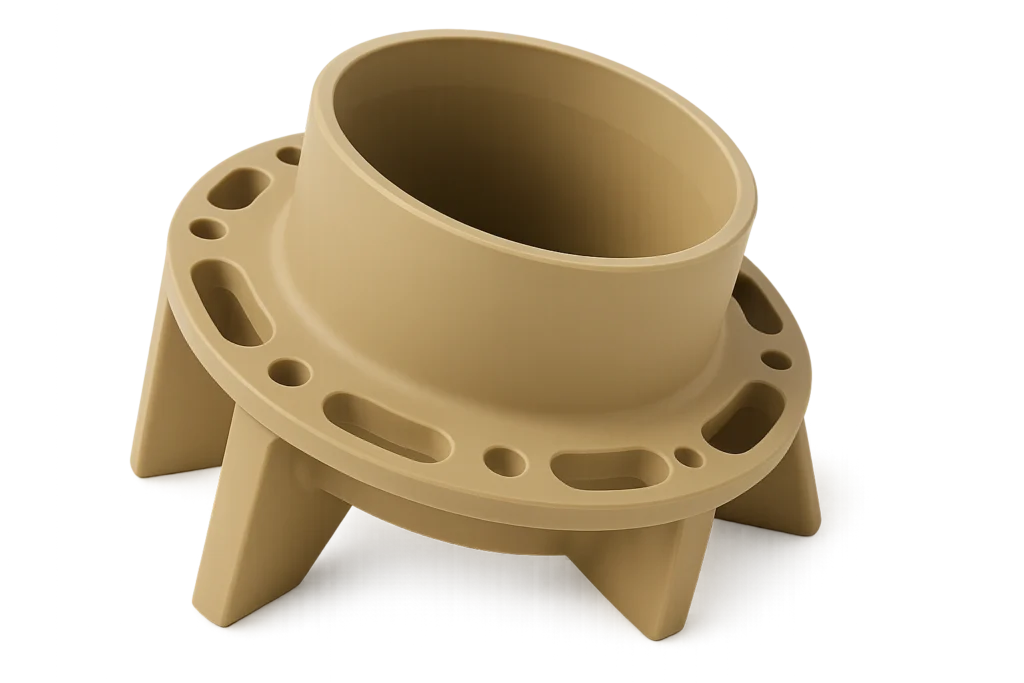

Powder Coating

This finish involves coating the parts with powdered paint and curing them in an oven, creating a tougher, more wear- and corrosion-resistant surface compared to conventional painting techniques.

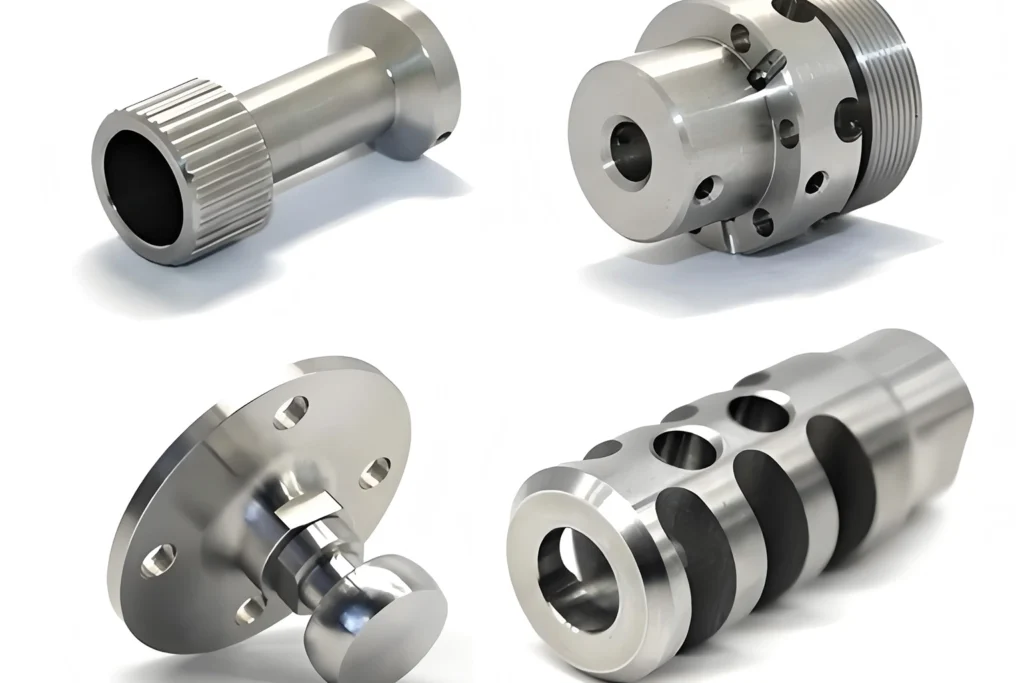

Plating

Includes Nickel Plating, Silver Plating, Gold Plating, Zinc Plating, Chrome Plating, Tin Plating, and more—perfect for enhancing corrosion resistance, appearance, solderability, and electrical conductivity.

Heat Treatment

We employ precise thermal processes such as quenching, tempering, and case hardening to fundamentally enhance the performance of your metal components. This controlled transformation optimizes material properties, delivering increased hardness, superior strength, and enhanced wear resistance for demanding applications, ultimately leading to a longer component lifespan.

Process Name	Primary Purpose	Typical Applications
Quenching	Significantly increases hardness, strength, and wear resistance.	Components requiring high hardness and wear resistance, such as bearings, gears, molds, and cutting tools.
Quenching and Tempering	Achieves excellent balanced mechanical properties (high strength combined with good toughness).	Critical structural parts under complex loads, such as shafts, connecting rods, and bolts.
Carburizing	Increases surface hardness and wear resistance of low-carbon steel workpieces.	Gears, piston pins, drive shafts, etc.
Nitriding	Enhances surface hardness, wear resistance, fatigue strength, and galling resistance.	Precision machine tool spindles, high-speed engine crankshafts, injection molding machine screws, etc.
Carbonitriding	Combines the characteristics of both carburizing and nitriding.	Various high-demand structural components, such as automotive and agricultural machinery parts.
Solution Treatment and Aging	Increases strength and hardness of non-ferrous metals like aluminum alloys and stainless steel.	Aluminum alloy aerospace components, stainless steel structural parts.
Vacuum Heat Treatment	Prevents oxidation and decarburization during heating, achieving a bright finish.	High-grade tool steels, mold steels, and precision aerospace components.

Frequently Asked Questions(FAQs)

We deliver more than just qualified parts; we deliver reliable solutions with the highest standards of precision,
quality, and on-time delivery. We understand the critical role our components play in the success of your products.

What types of parts are suitable for CNC turning,and how do I choose between turning and milling?

CNC turning is particularly well-suited for machining rotationally symmetric or near-symmetric parts.

Typical turned parts include:

Shafts,rods,and pins
Bushings,bearing housings,and flanges
Threaded components(bolts,nuts,screws)
Pipe fittings and valve parts
Discs and wheel hubs

What are the advantages of Mill-Turn machining?

The unique value of a Mill-Turn Center lies in:

Single Setup:Complete all turning and milling features in one clamping.
Reduced Error Stack-up:Improve positional accuracy(concentricity,perpendicularity,etc.).
Machining Complex Features:Handle eccentric holes,side slots,radial holes,flat surfaces,etc.
Fewer Production Steps:Reduce handling time and fixture investment.
